Digital Output Module (Relay Interface)

///Digital Output Module (Relay Interface)
Digital Output Module (Relay Interface) 2018-07-25T18:15:24+00:00

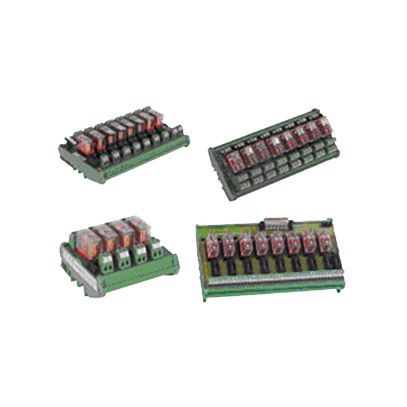

Relay interface modules are available in different channel densities viz 1, 2, 4 & 8 channel Relay Interface Module and choice of features such as with / without fuse and with / without relay mounting base.

Download PDF

Applications

  • Interfacing of PLC I/Os to field Sensors & actuators.

  • Multiplication of PLC O/Ps for separately driving actuators, annunciators & other devices.

  • Isolation of high voltage load & input devices from sensitive PLC electronics.

  • Providing channel wise isolation for PLC inputs & outputs.

Benefits

  • Specially designed boards offered in Phoenix DIN std. Mounting base.
  • Host of I/O wiring options selectable thru’ on-board shorting links reduces the wiring time.
  • UL certified non-self loosening terminals provide reliable connectivity.
  • PLC specific Relay Interface Modules with prefab cables facilitates easy & quick I/O wiring and testing. Thus resulting in enormous cost saving in panel assembly & testing.

Type of Relay Interface module

  • One Change over Relay Interface module.

  • Two Change over Relay Interface module.
  • Four Change over Relay Interface module.
  • Six Change over Relay Interface module.

CANOPUS PLC System cabling is available for PLC’s from

  • Allen Bradley.

  • Mitsubishi.

  • Siemens.

  • GE Fanuc.

  • Schneider.

Ordering Data

e.g. CAN 8 – 24D – 1 – MB is order code. for 8 channel relay module with one change over, 24VDC coil OMRON relay with base mounting.

Technical Specifications

1. Relay Make O/E/N / OMRON.
Approvals UL / CSA / VDE.
Contacts 1/2/4 Change over contacts per relay.
Coil voltage 24 V DC / 48VDC/110 V AC / 230 V AC
Min. Pull in voltage = 80 % Max Allowable Voltage = 130 %
2. Terminations Make Phoenix / Vital
Approvals UL / CSA / VDE.
Rating 32 A max. suitable for 2.5 mm cables.
Features Unbreakable, Non Self Loosening.
3. Indications and Protections Each relay is provided with LED indication.
All relays have freewheeling diode protection.
4. Enclosure And Mounting PCB is enclosed in Phoenix Contact DIN Rail mounting profile. The entire assembly is suitable for mounting on 35 mm DIN rail.
